◆ All aluminum alloy frame and steel frame, both available, windload 70-100km/h
◆ Easy assemble and dismantle, reusable for 5-15 years
◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant, temperature resistance-30°~70°
◆ No bearing column, inner space 100% used
◆ Modular structure, width from 3m-50m, length no limit
Event Big Tent Features:
◆ All aluminum alloy frame and steel frame, both available, windload 70-100km/h
◆ Easy assemble and dismantle, reusable for 5-15 years
◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant, temperature resistance-30°~70°
◆ No bearing column, inner space 100% used
◆ Modular structure, width from 3m-50m, length no limit
Event Big Tent Specification:
Item | Specification |
Clear-span width | 10m~25m |
Side height | 3m~4m |
Ridge height | 4m~6.3m |
Roof pitch | 18° |
Bay distance | 5m |
Framework Material | Hard pressed extruded aluminum 6005/6061/T6 (15HW) |
Roof fixing | Bar tensioning |

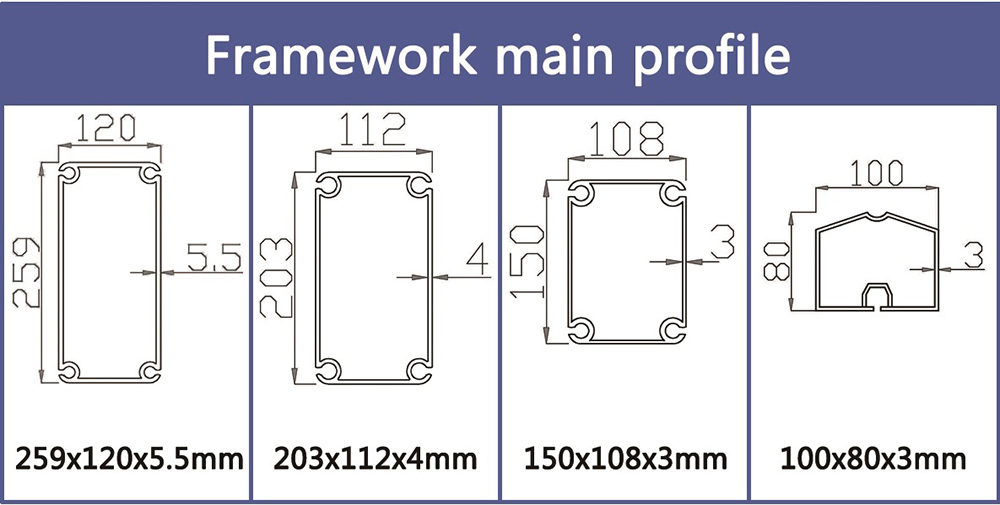

Main profile | 150x108x3mm~259x120x5.5mm |
Wind loading | 70~100km/h |
Eave connection | Galvanized reinforced steel panel |
Cover material | PVC Tent Cloth : 650g、750g、850g、950g/m2 |

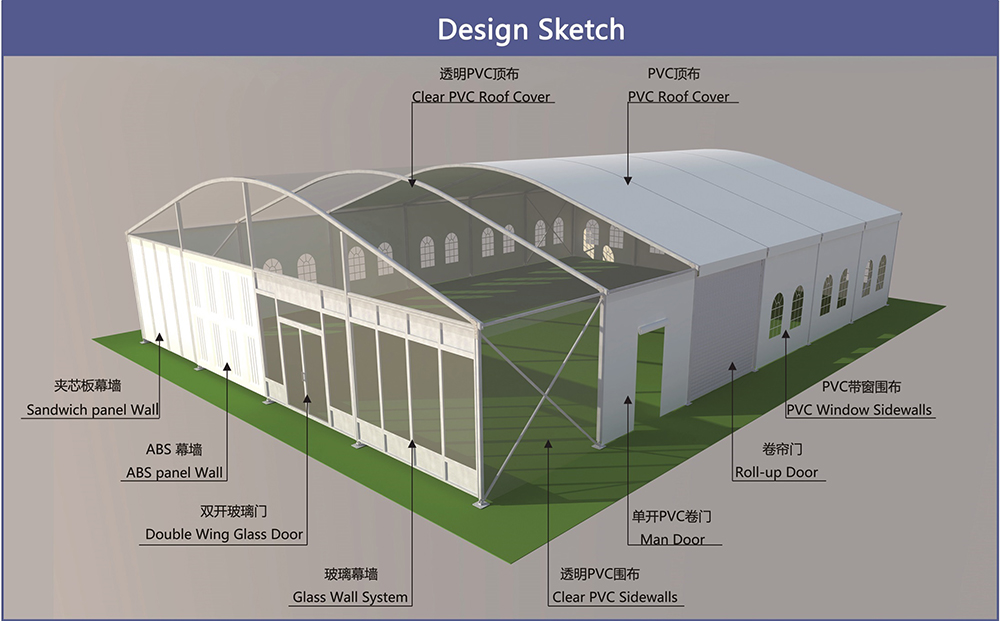

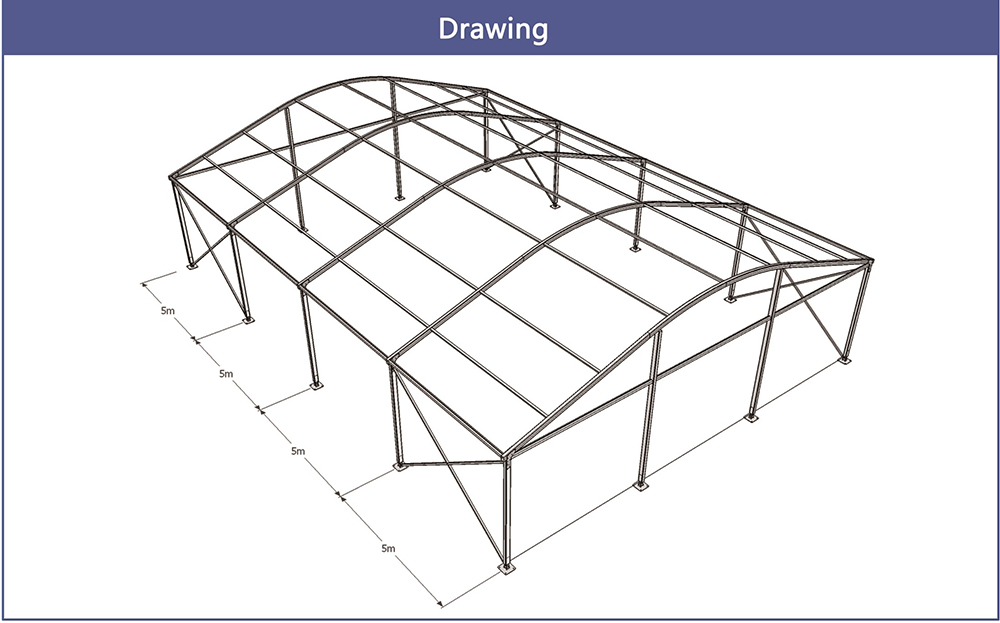

Diagram:
