◆ Archy fluent roof design, elegant outlook
◆ Easy assemble and dismantle, reusable for 5-15 years
◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant,temperature resistance -30°~70°
◆ No bearing column, inner space 100% used
◆ Modular structure, width from 3m-50m, length no limit
Event Big Tent Features:
◆ Archy fluent roof design, elegant outlook
◆ Easy assemble and dismantle, reusable for 5-15 years
◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant,temperature resistance -30°~70°
◆ No bearing column, inner space 100% used
◆ Modular structure, width from 3m-50m, length no limit
Event Big Tent Specification:
Item | Specification |
Clear-span width | 3m~10m |
Side height | 2.5m~3m |
Ridge height | 2.8m~4m |
Roof pitch | 18° |
Bay distance | 3m |
Framework Material | Hard pressed extruded aluminum 6005/6061/T6 (15HW) |
Roof fixing | Bar tensioning |

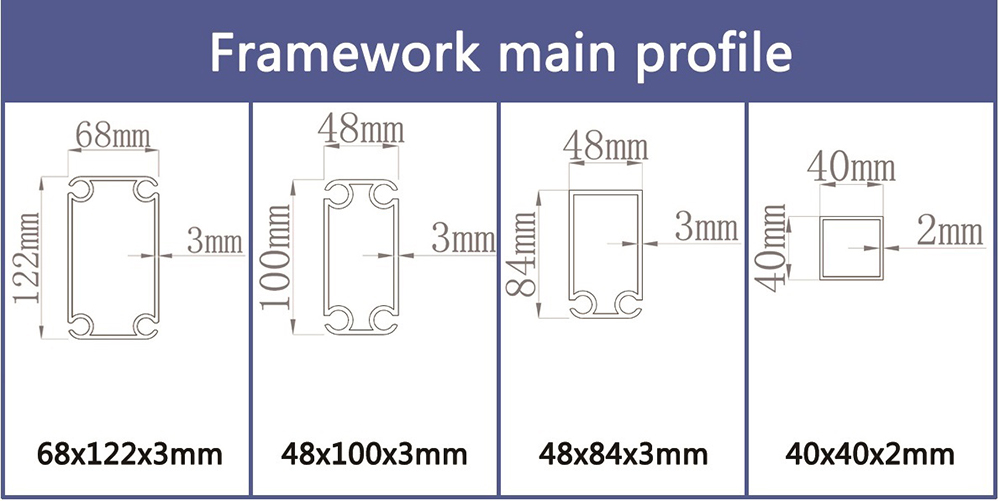

Main profile | 48x84x3mm~68x122x3mm |
Wind loading | 70~100km/h |
Eave connection | Galvanized reinforced steel panel |
Cover material | PVC Tent Cloth : 650g、750g、850g、950g/m2 |

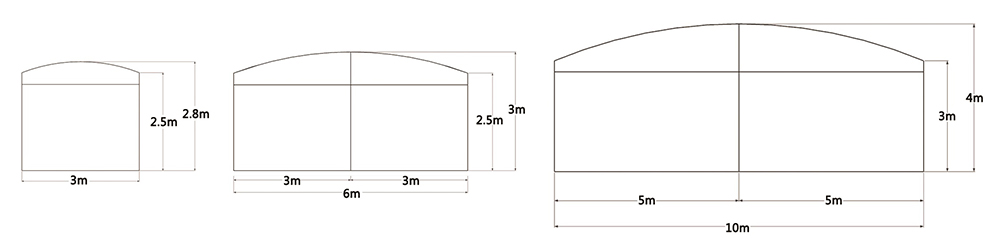

Diagram:
