Curve Tent
Curve Tent

Curve Tent

◆ Shaped roof design, larger inner space

◆ Easy assemble and dismantle, reusable for 5-15 years

◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant,temperature resistance -30°~70°

◆ No bearing column, inner space 100% used


Product Detail


Event Big Tent Features:


◆ Shaped roof design, larger inner space

◆ Easy assemble and dismantle, reusable for 5-15 years

◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant,temperature resistance -30°~70°

◆ No bearing column, inner space 100% used


Event Big Tent Specification:


Item

Specification

Clear-span width

15m~40m

Side height

4m

Ridge height

8m~11.5m

Roof pitch

25°

Bay distance

5m

Framework Material

Hard pressed extruded aluminum 6005/6061/T6 (15HW)

Roof fixing

Bar tensioning

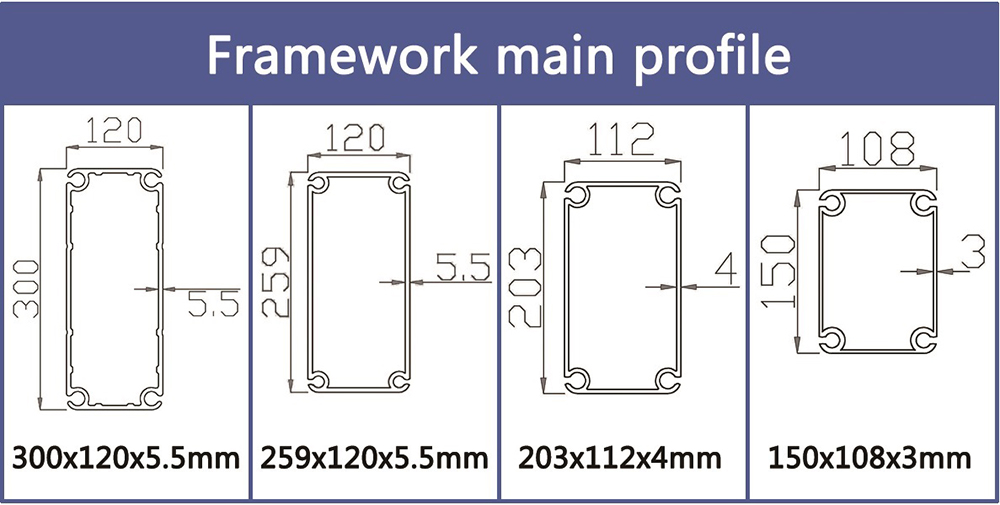

Main profile

150x108x3mm~300x120x5.5mm

Wind loading

70~100km/h

Eave connection

Galvanized reinforced steel panel

Cover material

PVC Tent Cloth : 650g、750g、850g、950g/m2
double PVC-Coated polyester,650g/750g/850g/950g/m,flame re- tardant,UV resistance,waterproot,comply to DIN 4102 B1,M2

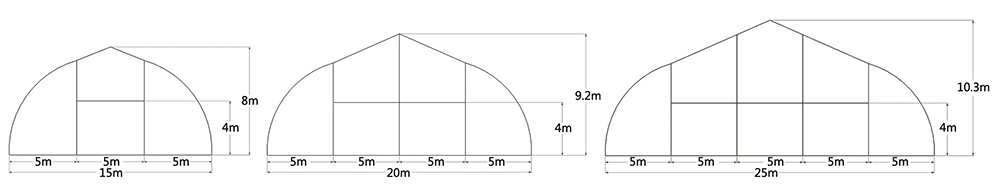

Diagram:
