PRODUCTS
Multi-side Tent
Multi-side Tent

Multi-side Tent

◆ Multi-side circular roof design, elegant outlook

◆ Suitable for decoration with cheerful atmosphere

◆ Easy assemble and dismantle, reusable for 5-15 years

◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant, temperature resistance -30°~70°

◆ No bearing column, inner space 100% used

Product Detail


Event Big Tent Features:


◆ Multi-side circular roof design, elegant outlook

◆ Suitable for decoration with cheerful atmosphere

◆ Easy assemble and dismantle, reusable for 5-15 years

◆ Tarpaulin with 650g-850g double-coated PVC, fire resistant, temperature resistance -30°~70°

◆ No bearing column, inner space 100% used


Event Big Tent Specification:


Item

Specification

Clear-span width

6m~30m

Side height

2.6m~5m

Ridge height

5m~11m

Roof pitch

15°~18°

Bay distance

3m~6m

Framework Material

Hard pressed extruded aluminum 6005/6061/T6 (15HW)

Roof fixing

Bar tensioning

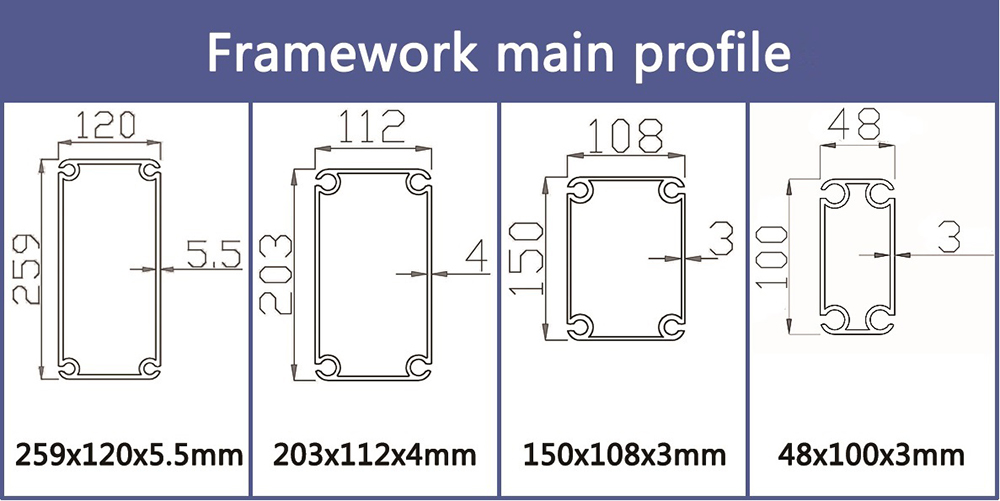

Main profile

48x84x3mm~300x120x5.5mm

Wind loading

70~100km/h

Eave connection

Galvanized reinforced steel panel / Insert

Cover material

PVC Tent Cloth : 650g、750g、850g、950g/m2
double PVC-Coated polyester, 650g/750g/850g/950g/m, flame re-tardant, UV resistance, waterproot, comply to DIN 4102 B1, M2

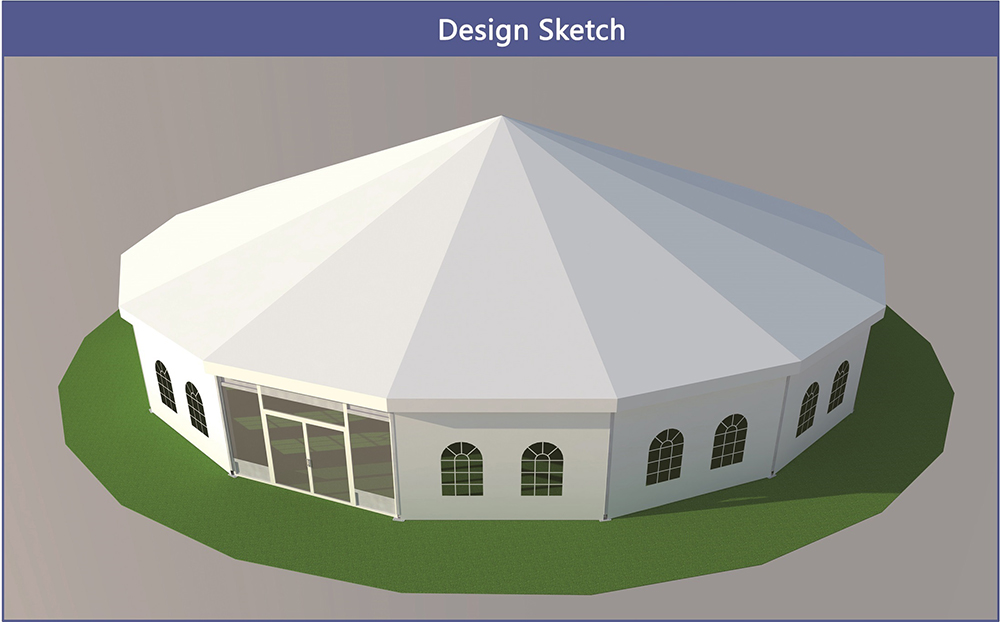

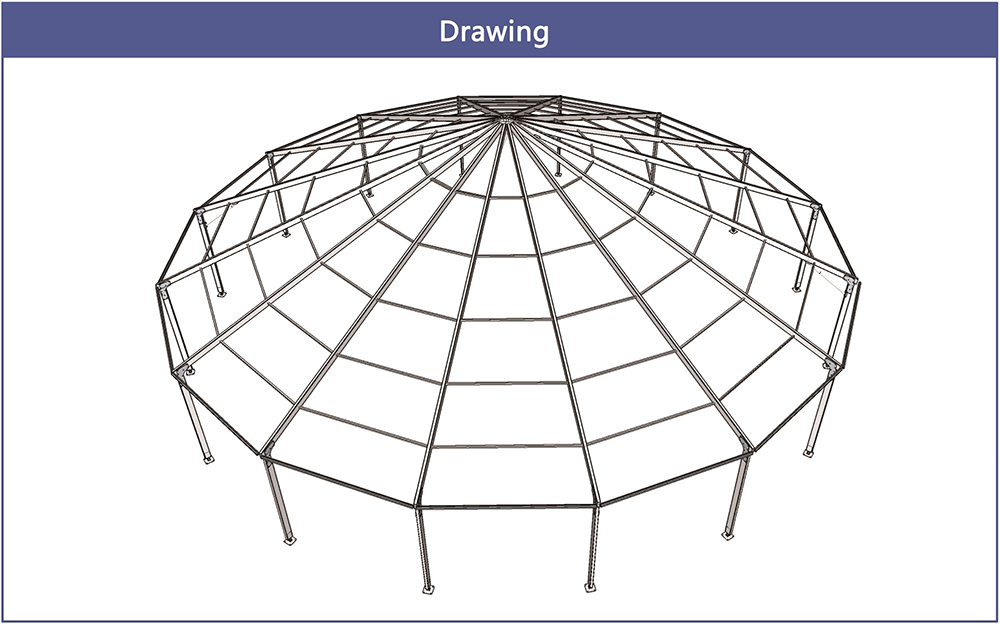

Diagram:
